gf::Cells Class Reference

The properties of cells. More...

#include <gf/Cells.h>

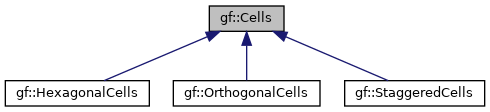

Inheritance diagram for gf::Cells:

Public Member Functions
virtual	~Cells ()
	Virtual destructor. More...
virtual RectF	computeBounds (Vector2i layerSize) const noexcept=0
	Compute the local bounds of the cells. More...
virtual RectI	computeVisibleArea (const RectF &local) const noexcept=0
	Compute the visible area in terms of coordinates. More...
virtual RectF	computeCellBounds (Vector2i coords) const noexcept=0
	Compute the cell bounds. More...
virtual Vector2i	computeCoordinates (Vector2f position) const noexcept=0
	Compute the coordinates of a cell. More...
virtual Polyline	computePolyline (Vector2i coords) const =0
	Compute the polyline representing a cell. More...
virtual std::vector< Vector2i >	computeNeighbors (Vector2i coords, Vector2i layerSize, Flags< CellNeighborQuery > flags=gf::None) const =0
	Compute the neighbors of a cell. More...

Detailed Description

The properties of cells.

These properties depend on the orientation of the cells in the map:

• gf::OrthogonalCells
• gf::StaggeredCells
• gf::HexagonalCells

See also

gf::CellOrientation, gf::Grid, gf::TileLayer

Constructor & Destructor Documentation

~Cells()

virtual gf::Cells::~Cells ( )

virtual

Virtual destructor.

Member Function Documentation

computeBounds()

virtual RectF gf::Cells::computeBounds ( Vector2i  layerSize ) const

pure virtualnoexcept

Compute the local bounds of the cells.

Parameters

layerSize

The size of the layer

Returns

The bounds of the cells

Implemented in gf::OrthogonalCells, gf::StaggeredCells, and gf::HexagonalCells.

computeCellBounds()

virtual RectF gf::Cells::computeCellBounds ( Vector2i  coords ) const

pure virtualnoexcept

Compute the cell bounds.

Parameters

coords

The coordinates of the cell

Returns

The rectangular bounding box of the cell

Implemented in gf::OrthogonalCells, gf::StaggeredCells, and gf::HexagonalCells.

computeCoordinates()

virtual Vector2i gf::Cells::computeCoordinates ( Vector2f  position ) const

pure virtualnoexcept

Compute the coordinates of a cell.

Parameters

position

The local position

Returns

The coordinates of the cell

Implemented in gf::OrthogonalCells, gf::StaggeredCells, and gf::HexagonalCells.

computeNeighbors()

virtual std::vector< Vector2i > gf::Cells::computeNeighbors ( Vector2i  coords, Vector2i  layerSize, Flags< CellNeighborQuery >  flags = gf::None  ) const

pure virtual

Compute the neighbors of a cell.

Parameters

coords	The coordinates of the cell
layerSize	The size of the layer
flags	The parameters of the query

Returns

An array of coordinates of the neighbors

Implemented in gf::OrthogonalCells, gf::StaggeredCells, and gf::HexagonalCells.

computePolyline()

virtual Polyline gf::Cells::computePolyline ( Vector2i  coords ) const

pure virtual

Compute the polyline representing a cell.

Parameters

coords

The coordinates of the cell

Returns

A polyline (loop) that represents the cell

Implemented in gf::OrthogonalCells, gf::StaggeredCells, and gf::HexagonalCells.

computeVisibleArea()

virtual RectI gf::Cells::computeVisibleArea ( const RectF &  local ) const

pure virtualnoexcept

Compute the visible area in terms of coordinates.

Parameters

local

The visible area

Returns

The visible coordinates

Implemented in gf::OrthogonalCells, gf::StaggeredCells, and gf::HexagonalCells.
